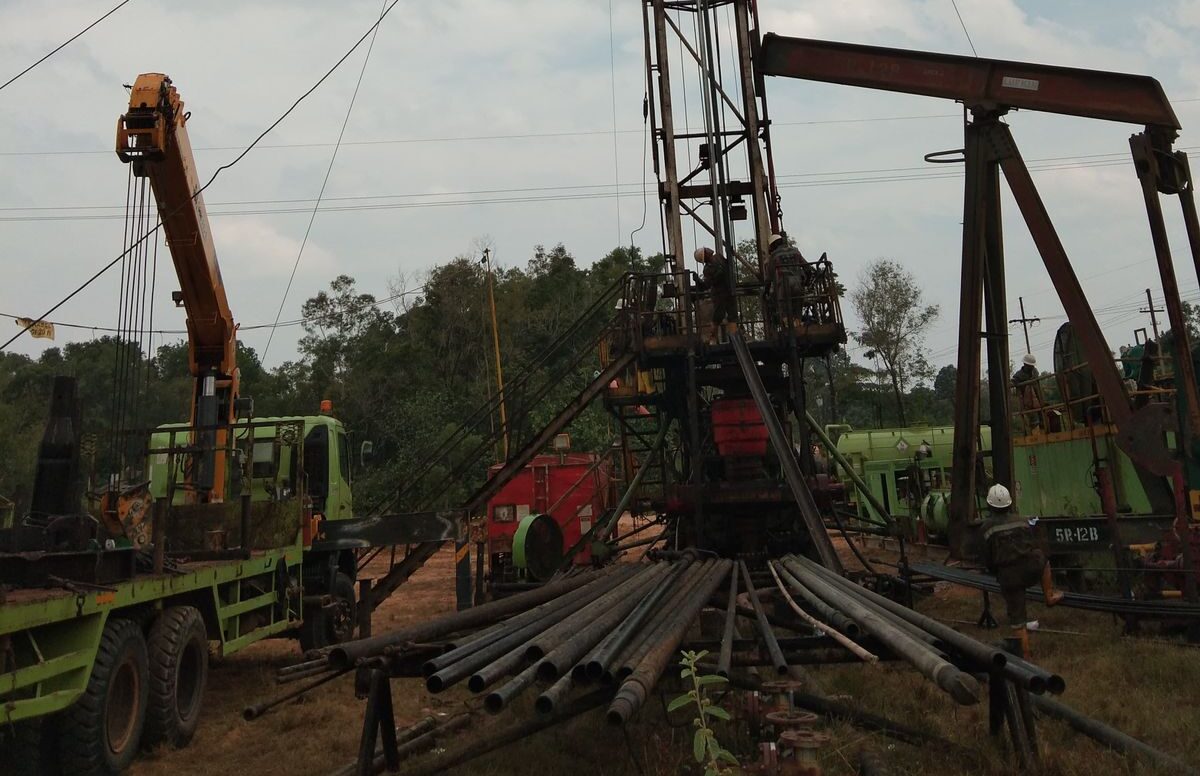

RIG BMS #01

UNDER CONTRACT WO/WS

PERTAMINA HULU ROKAN

Drawwork Manufacture / Years Ideco Rambler / 1985
Model / Type / Capacity / Serial number H-25CD / Double Drum / 250 HP / 1296
Groove Size (wire rope) 7/8″ ( 22 mm )
Sand Line Size 9/16″ (14.5 mm)
Power supply (Primemover)
1.5.1 Manufactur / Years Caterpillar / 2001
1.5.2 Model / Tipe / Serial number Cat 3306 / PC / 66D34504
1.5.3 Rating 300 HP
1.5.4 Transmission Allison CLT 750
Auxiliary Brake 122 Hydrobrake
Menara Manufacture / Years Ideco Rambler / 1985
Tinggi menara / Model / Tipe / Serial number 84 ft / KM-90-212-GH / 977
Maks. Static hook load (Nameplate) 212.000 lbf ( 96 ton )
Beban yang diizinkan 112.435 lbs ( 51 ton )
Working Flatform Manufacture Ideco Rambler Co.
Size / Range ( 4 x 2.5 ) m / Class III BOP
Carrier Manufacture / Years Ideco Rambler Co.  / 1985
Vehicle Identification Number / SN B-443
Driving Type 8 x 4
Power supply Same as Primemover
Max speed 60 km/h (limiting speed 45 km/h)
Minimum graound clearance 0.34 m
Axels 2 front and 2 rear
Crown Block Manufacture / Years Ideco Rambler Co.  / 1985
Model / Serial number 250#01CB
Kapasitas 96.16 Ton
Jumlah sheave 5
Ukuran wirerope 7/8″ (22 mm)
Traveling Block Manufacture / Years Joy Oil Tool
Model / Serial number hydra / 080101
Kapasitas 65 Ton
Jumlah sheave 3
Ukuran wirerope 7/8″ ( 22 mm )
Drilling line Manufacture / Years Bridon / 2018
Contruction / Dia. rope 6x19S-IWRC-sZU / 22 mm ( 7/8′ )
Winch Manufacture / Years Bridon  / 1985
Model / Serial number 3T
Wirerope Size 1/2″
Amount of Winch 1 ea.
Power Driven Hydraulic
Handling Tools Elevator link N/A
Tubing Elevator N/A
Sucker Rod Elevator N/A
DC Elevator N/A
Sucker Rod Hook N/A
Tubing Power Tong/mnf/SN/Model/range N/A
Sucker Power rod tong/Mnf/SN/Model/range N/A
Tubing Spider Slip/Mnf/SN/Model/range N/A
Weight Indicator Manufacture / Years Martin Decker
Model / Tipe / Serial number Dial 6-1 Number
Dead Anchor Manufacture / Years Ideco Rambler / 1985
Model / Tipe / Serial number
Mud Pump Manufacture / Years OPI / 10-10-1996
Model / Tipe / Serial number F 350 / Triplex pump / J334
Working Pressure / Rating / GPM 3820 Psi  / 2000 Rpm / 394 Gpm
Power Driven
12.4.1 Manufacture / Years Cummin
12.4.2 Model / Type / Serial Number NTC 350 / K 19 / 6051491
12.4.3 Rating 2100 Rpm
Mud Pump Transmission
12.5.1. Manufacture / Years Allison
12.5.2. Model / Serial Number CLT 750
Pulsation Dampener Emsco Continental M734 / 5,000 psi
Charging Pump N/A
12.7.1 Manufacture / Years N/A
12.7.2 Model / Type / Serial Number N/A
12.7.3 Speed / Power N/A
Mud Tank Manufacture / Years Local Homemade
Square / 200 bbl Cap
Model / Type / Serial number
Capacity / Qty
Ram Type BOP Manufacture Townsend
Model / Tipe / Serial number 82/ Blind Shear rams / 36
Rating 11″ x 3,000 psi
COC No. BAS/040/COC/BOP/XI/2019
Annular BOP Manufacture Hydrill
Model / Tipe / Serial number GK/10372
Rating 11″ x 3,000 psi
COC No. BAS/036/COC/BOP/XI/2019
Accumulator Manufacture / Years Koomey / 04/20/1985
Model / Tipe / Serial number 60-15 SX / 80 / 4259
Working Pressure / Reservoir Cap. 3000 psi WP / 850 L
Jumlah botol 8 Botol
Choke & Kill Manifold Manufacture / Years Yancheng Sanyi / 2001
Model / Tipe / Serial number 3-1/8”x 3000  / G012086
Working Pressure 3,000 psi
Diesel Engine Manufacture / Years Diesel engine use are for drawworks, mud pump & generator (see drawwork, mud pump & generator)
Model / Type / Serial Number
Rating
Air Compressor & Receiver Manufacture / Years Hitachi / 1989
Model / Type / Serial Number 7.5 P – 9.5 T
Design Pressure 7.5 KW / 120 Psi
Main Generator Set Manufacture / Years N/A
Model / Serial Number N/A
Power / Current /  Speed / Phase N/A
