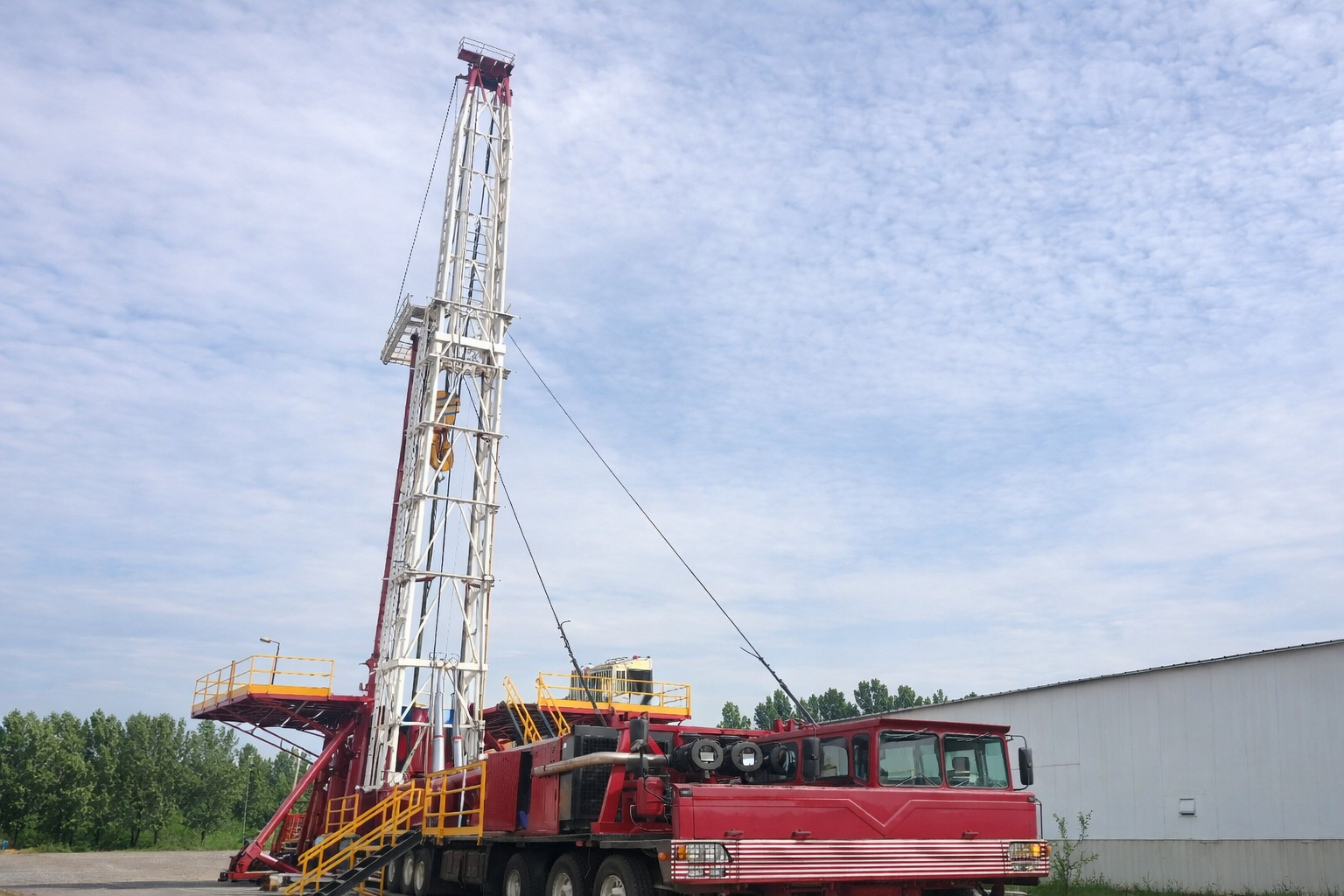

| RIG CARRIER |
| Manufacturer : RG Petro Machinery |
| Model : Truck Mounted / ZJ30/1700C2 |
| Driving Type : 14 x 8 |
| Axels : 2 Front & 3 rear |
| Serial Number : 10333 |
| Year Made : 2023-11 |
|
| DRAWWORK |
| Manufacturer : RG Petro Machinery Group Co.,ltd |
| Model : JC28/11F – Double drum Brake Disk |
| Capacity : 1000 HP |
| Wire Rope Size : 1-1/4” |
| Sand Line Size : 9/16” |
| Max Pull Fast Line : 62900 lbs |
| Serial Number : RG10097 |
| Year Made : 2023-11 |
| MAST |
| Manufacturer : RG Petro Machinery Group Co.,ltd |
| Model : JJ18038 |
| Max Static Hook Load : 1800 KN |
| Height : 38 m |
| Service Depth DP 2-7/8” : 6500 m |
| Drilling Depth DP4-1/2” : 3000m |
| Mass : 19200 kg |
| Serial Number : RG10097 |
| Year Made : 2023-09 |
|
| HYDRAULIC WINCH |
| Manufacturer : Litian NSLT Transmission Component |
| Model : YJ-5B |
| Capacity : 50 KN |
| Wire Rope : 5/8” – 1/2 |
| Serial Number : 10093 & 10094 |
| Year Made : 2010-10 |
| Quantity : 2 Unit |
|
| DEADLINE ANCHOR |
| Manufacturer : Hubei Jianghan Petroleum Instrument |
| Model : JZG 24 |
| Max Load : 240 KN |
| Serial Number : 23240 |
| Year Made : 2023-11 |
| DRAWWORK PRIME MOVER |
| Manufacturer : Caterpillar |
| Model : C15 |
| Rating : 540 HP |
| Serial Number : JRE12547 & JRE 12542 |
| Year Made : 2010-09 |
| Quantity : 2 Unit |
|
| DRAWWORK TRANSMISSION |
| Manufacturer : Allison |
| Model : S5610HR |
| Serial Number : 3110112943 & 3110112983 |
| Rating : 600 HP |
| Quantity : 2 Unit |
|
| SUBSTRUCTURE |
| Manufacturer : ZYZJ Petroleum Equipment |
| Model : ZZT180C |
| Max rated Static Load : 4500KN |
| OD : 27 Inch |
| Serial Number : 37401 |
| Year Made : 2023-11 |
|
| ROTARY TABLE |
| Manufacturer : RG Petro Machinery Group |
| Model : ZP 275 |
| Max rated Static Load : 1800 KN |
| Height : 6 m |
| Serial Number : 10086 |
| Year Made : 2023-11 |
|
| TRAVELING BLOCK |
| Manufacturer : RG Petro Machinery Group |
| Model : YG 225 |
| Capacity : 2250 KN |
| Sheave : 5 ea |
| Wire Rope Diameter : 1-1/4” |
| Serial Number : RG150902 |
| Year Made : 2015-09 |
|
| LINK ELEVATOR |
| Manufacturer : |
| Model : |
| Capacity : |
| KELLY SWIVEL |
| Manufacturer : |
| Model : |
| Capacity : |
| Pressure : |
