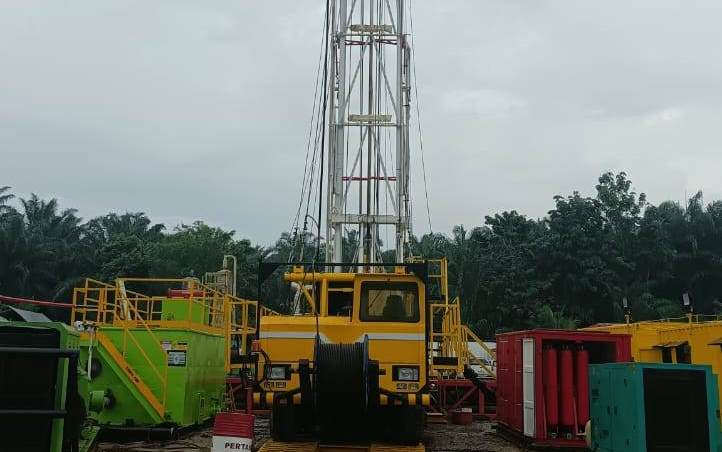

RIG BMS #20

UNDERCONTRACT WO/WS

PERTAMINA HULU ROKAN

Drawwork	Manufacture / Years	Rg Petro Machinery Group / 2008
	Model / Type / Capacity / Serial number	JC 18/11BII / Double drum / 350 HP /RG08106
	Groove Size (wire rope)	1″ (26 mm)
	Sand Line Size	9/16″ (14.5 mm)
	Power supply (Primemover)
	Manufaktur / Years	Caterpillar /2007
	Model / Serial number	C15/JRE04458
	Rating	540 HP
	Transmission Model / SN	CLTS5610MR/3110110438
	Auxiliary Brake	122 Hydrobrake
Menara	Manufacture / Years	Rg Petro Machinery Group / 2008.06
	Tinggi menara / Model / Tipe / Serial number	95.14 ft (29 m) / JJ9029 / Telescopic / RG07095
	Maks. Static hook load (Nameplate)	900 KN / 202,328 lbf (91.77 Ton)
	Beban yang diizinkan	81.862 Ton
Pipe handling	Service Depth / Tubing Size	2500 m ( 8200 ft ) /3-1/2″ DP
Pipe handling	Work Over Depth / Pipe	4000 m ( 13123 ft ) / 2.7/8″ Tubing
Racking Board Capacity	DP 4 1/2″ / max . Wind Resistance Capacity	2500 m ( 265 Jts ) / 110 Km/h
	DP 2-7/8″/ max . Wind Resistance Capacity	3200 m ( 338 Jts ) / 110 Km/h
	Tubing 2-7/8″/ max . Wind Resistance Capacity	4000 m ( 423 jts) / 110 Km/h
Carrier	Manufacture / Years	Rg Petro Machinery Group / 2008.06
	Model / Type	Truck Mounted / XD50/10×8
	Vehicle Identification Number / SN	LA9XTEKN380AES094 / RG08094
	Driving Type	10×8
	Power supply	Same as Primemover
	Max speed	60 km/h (limiting speed 45 km/h)
	Minimum graound clearance	0.34 m
	Axels	2 front and 3 rear
Crown Block	Manufacture / Years	Rg Petro Machinery Group / 2008.06
	Model / Serial number	TC158 (4×3)/ RG07095
	Kapasitas	1580 kN (161 Ton)
	Jumlah sheave	5 ea
	Ukuran wirerope	1″ (26 mm)
Traveling Block	Manufacture / Years	SJ Petroleum Machinery / 2014.06
	Model / Serial number	YG-110-3/ 140503
	Kapasitas	110 Ton / 1100 KN
	Jumlah sheave	3 ea ( 605 mm)
	Ukuran wirerope	1″ (26 mm)
Drilling line	Manufacture / Years	Guizhou Wire Rope
Drilling line	Contruction / Dia. rope	6x19S+IWRC/26 mm
Sand Line	Manufacture / Years	Guizhou Wire Rope
Sand Line	Contruction / Dia. rope	6×7 FC / 9/16″
Winch	Manufacture / Years	Huanghe
	Model / Serial number	YJ-5T-2A & YJ 3T-4A / SN. 1205 & 42
	Wirerope Size	Wire Rope size 5/8″ & 1/2″
	Amount of Winch	2 Unit
	Power Driven	hydraulic
Handling Tools	Elevator link	Taixing Petroleum Machinery/ DH 150/ Cap 150 Ton
	Tubing Elevator	Center lacth 150 Ton / Jiangsu Rutong / 2-3/8″, 2.7/8″, 3-1/2″, 4-1/2″
	Sucker Rod Elevator	Type SR / Jiangsu Rutong/ sz range 5/8″ , 3/4″-7/8″, 1″
	DC Elevator	Center latch TA 150 TON/BVM/sz 4-3/4′
	Sucker Rod Hook	Spring type / Jiangsu Rutong / 35 Ton Cap
	Tubing Power Tong/mnf/SN/Model/range	Teda Model ZQ127/25 / 2.7/8” – 5.1/2”
Weight Indicator	Manufacture / Years	Hubei Jianghan Petroleum Instrument & Meter Co., Ltd
Weight Indicator	Model / Serial number	JZ100/L1311
Dead Anchor	Manufacture / Years	Hubei Jianghan Petroleum Instrument & Meter Co., Ltd / 2008.06
	Model / Serial number	JZG15/F0089
	Max Deadline Load	150 KN

Tubing Swivel	Manufacture / Years	Tonghua Petro Chemical/2023
	Model /Serial number	HSL 60 / 202307005
	Kapasitas	60 Ton / 3000 psi

Mud Pump	Manufacture / Years	ZRG Gauyou Haoxiang Petroleum Machinery/12.2023
	Model / Tipe / Serial number	W-446 – 500 HP
	Working Pressure / Rating / GPM	3000 psi/2100 rpm/570 GPM
	Power Driven
	Manufacture / Years	Caterpillar
	Model / Type / Serial Number	C15/MCW05080
	Rating	540 HP
	Mud Pump Transmission
	Manufacture / Years	Allison
	Model / Serial Number	M5620AR/3110117846
	Pulsation Dampener	GK23-006/650 psi
	Charging Pump
	Manufacture / Years	Chengdu West Petroleum/2023
	Model / Type / Serial Number	SB150-100
	Speed / Power	30 HP
Mud Tank	Manufacture / Years	Besmindo Materi Sewatama/2024
	Model	Squar
	Capacity / Qty	600 bbl/3 unit
	Mud Agitator
	Manufacture	GN Solid Control
	Model / Qty	GNBQ075C / 4 Unit
	Electric Motor power	10 HP/7.5 KW
	Mixing Hopper
	Manufacture	GN Solid Control
	Model / Qty	GNSLS45A / 1 Unit
	Mixing Pump
	Manufacture	GN Solid Control
	Model / Qty	GNSB6x5A-12J
	Electric Motor power	50 HP/37 KW / 1 Set
	Shale Shaker
	Manufacture	Derric
	Model / Qty	FLC502
	Electric Motor power	3 HP/ 2.2 KW
	Vibration Intensity	5 G

Ram Type BOP	Manufacture	Rongseng
	Model / Tipe / Serial number	Double Rams/ 2FZ28-21 / K15-020
	Rating	11″ x 3000 Psi
	COC No.	015/BOP-COC/IV/2022
Annular BOP	Manufacture	Hydril
	Model / Tipe / Serial number	Gk/ 5008
	Rating	11″ x 3000 Psi
	COC No.	080/NS-COC/IX/2023
Accumulator	Manufacture / Years	Yancheng Ruihua / 2023
	Model / Tipe / Serial number	FKQ480-5 / 23-12
	Working Pressure / Reservoir Cap.	3000 Psi WP / 480 L
	Jumlah botol	12 Botol
Choke & Kill Manifold	Manufacture / Years	SJ Petroleum / May 2013
	Model / Tipe / Serial number	Gate valve / Flange / G1304073
	Working Pressure	3000 Psi WP

Diesel Engine	Manufacture / Years	Diesel engine use are for drawworks, mud pump & generator (see drawwork, mud pump & generator)
	Model / Type / Serial Number
	Rating
Air Compressor & Receiver	Manufacture / Years	Ingersol Rand/2023
	Model / Type / Serial Number	7100D15/12
	Design Pressure	350 Psi
Main Generator Set	Manufacture / Years	Fengfa
	Generator Unit model / Serial number	FFDL-120 GF
	Rating	140 KVA
	Generator Prime mover Manf / Years	Cummin / 2023.03
	Serial Number	93131868

Escape Line	Manufacture	DBI Sala
Escape Line	Model / QTY	Slow Speed / 1 ea
Fire Extinguisher	Manufacture	Firex
Fire Extinguisher	Model / QTY	Dry Powder 9 kg 3 Can, FOAM 90 liter 1 Can, Dry Powder 90 Kg 1 can and CO2 25 lbs 3 can
Safety Shower and eye Wash	Manufacture	HAWS
Safety Shower and eye Wash	Model / QTY	8300 & 7500 / 2 ea
Multy Gas Detector	Manufacture	MSA
Multy Gas Detector	Model / QTY	Altair 4XR Multi gas Detector 4 Gas 2 Unit
Self Contained Breathing Apparatus	Manufacture	Dragger
Self Contained Breathing Apparatus	Capacity / Qty	6.8 Liter, 30 Menit / 2 Unit
